Full Automatic Water Bottle Making Machine Pet Bottle Manufacturing Machine

    Buy cheap Full Automatic Water Bottle Making Machine Pet Bottle Manufacturing Machine from wholesalers

    Buy cheap Full Automatic Water Bottle Making Machine Pet Bottle Manufacturing Machine from wholesalers
    • Buy cheap Full Automatic Water Bottle Making Machine Pet Bottle Manufacturing Machine from wholesalers
    • Buy cheap Full Automatic Water Bottle Making Machine Pet Bottle Manufacturing Machine from wholesalers

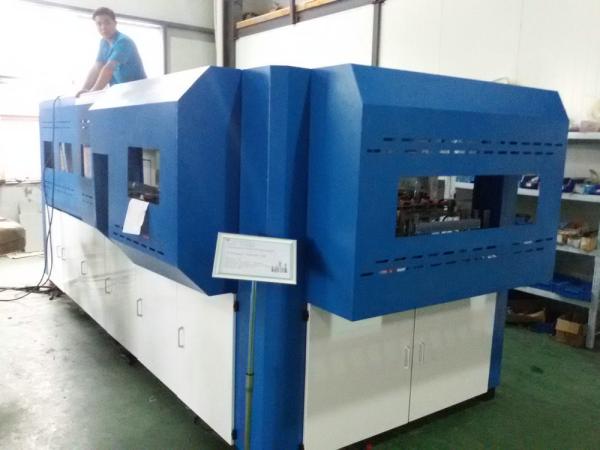

    Full Automatic Water Bottle Making Machine Pet Bottle Manufacturing Machine

    Ask Lasest Price
    Price : Negotiation
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Full Automatic Water Bottle Making Machine Pet Bottle Manufacturing Machine

    Full Automatic Water Bottle Making Machine Pet Bottle Manufacturing Machine


    Description:


    Full automatic bottle blowing machine is suitable for producing PET plastic containers and

    bottles in all shapes. Bottle Blowing Machine is widely used to produce the carbonated bottle, mineral

    water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc


    Technical parameter


    NameItemUnitDetails
    Blowing machineDimensionmm1600*600*1610mm
    Weightkg500
    Bottle volume (max)ml2000
    Bottle volume (min)ml50
    Bottle Neck Diameter (max)mm40
    Bottle Neck Diameter (min)mm18
    Body Diameter (max)mm125
    Body Height( max)mm420
    Number of Cavitiesmold2
    Production outputpcs/h1600-1800BPH
    Clamping forceT5.7(56KN)
    Mold thicknessmm200(max)
    Mold widthmm360x390
    Space between Tie-barsmm120-220
    Diameter of Tie-barsmm63
    Scope of Tie-barsmm405
    Mold strokemm160
    Stretching stroke (max)mm420
    Working pressureMpa0.8-1.0Mpa
    Blowing pressureMpa2.0-3.0Mpa
    Voltage/PowerV/KW220V/1KW
    WeightKg500

    Pre-heater


    Dimensionmm1870*630*1450mm
    Weightkg260
    Voltage/PowerV/KW380V/14KW

    FAQ


    Q1: Are you a trading company or a manufactory?

    A1: We own a factory ourselves, and we can assure the quality we manufactured.

    Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

    A2: We offer you high quality machines with high quality after-service. Also we have one year warranty of the spare parts, free of charge.

    Q3: When can I get my machine after I paid?

    A3: We will deliver the machines on time as the date we agreed both side.

    Q4: How can I install my machine when it arrives?

    A4: We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.

    Q5: How about the spare parts?

    A5: After we deal down all the things , we will offer you a spare parts list for your reference.


    About Us:

    Zhejiang Jinben Machinery Manufacturing Co., Ltd., founded in 1995 with the area of 23,500㎡, is specialized in the design, research and development, production and sales of food and beverage machinery and equipment.


    The main products and service are beverage filling production lines, milk yoghurt production lines, water production lines, water treatment equipment, sterilizing machines, filling machines, labeling machines, stainless steel tanks and series of packaging machinery and equipment. Our products not only sell well in China, but also sell over the world. The annual export volume is stable and shows continuous growth.


    Based on the company philosophy of “implementing scientific management, creating excellent quality, and serving customers with integrity”, the company actively explores markets and provides quality products and perfect services to customers.


    Sincerely welcome friends and customers come for business and let us develop together!
