3 Holes Fresh Milk Soft Drinks Plant Equipment / Dairy Production Equipment

Ask Lasest Price
Price :	Negotiation
Delivery Time :	30 working days

Add to Cart

Product Details
Company Profile

3 Holes Fresh Milk Soft Drinks Plant Equipment / Dairy Production Equipment

3 Holes Fresh Milk Soft Drinks Plant Equipment / Dairy Production Equipment

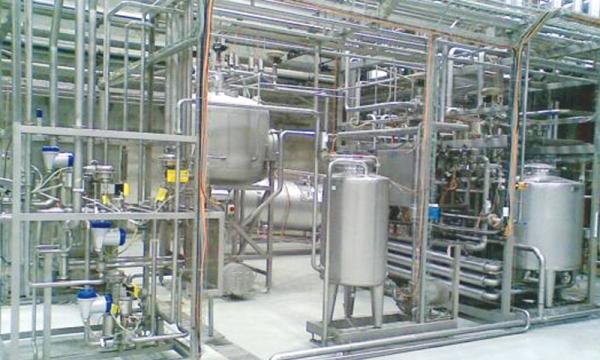

Milk Processing Equipment layout

Filter and Separator→Mixing system→Add Sugar→Pre heating→Homogenization →Pasteurization→Filling system→Sterilizing Retort

Specification:

Equipment list of DAIRY PRODUCTION LINE
NO.	NAME	MAIN TECHNOLOGY PARAMETER
1	MILK RECEIVESTORAGEAND CREAM SEPARETOR UNIT
2	electron pound scale	maximum weighing 500KG
3	milk weighing tank	made of SUS stainless steal,single layer,product feeded in through 40 mesh filter net,CIP cleaning ball
4	milk acceptor	SUS304 stainless steel,single layer,CIP cleaning ball
5	milk pump	SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
6	twin piping filter	SUS304 stainless steel,two pipe,Stainless Steal Filter Element 100 Mesh
7	dish separator	auto residue discharge
8	chiling tank	SUS304 stainless steel,alveolate jacket,attached with compressor
9	milk pump	SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
10	PREPARING UNIT
11	blending tank	SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet
12	milk pump	SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
13	mini set of plate-type heat exchanger	SUS304 stainless steel,two stages,
14	high speed emulsification tank	SUS304 stainless steel,heat insulated,bottom high speed emulsifier,digital readout thermometer,supporters with adjustable feet
15	milk pump	SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
16	twin piping filter	SUS304 stainless steel,two pipe,Stainless Steal Filter Element 100 Mesh
17	sterilizing,homogenizing unit
18	UHT sterilizer	tub-type,sterilzing temperature 137 C,holding time 4S,full automatic control
19	high pressure homogenizer	40MPa,(starting box included)
20	temperature holding	SUS304,holding 300S
21	distributing plate	SUS304,3 holes
22	cheesebutter processing unit
23	bufferying tank	SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet
24	milk pump	SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
25	cream seperator
26	bufferying container	SUS304,with cover
27	milk pump	SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
28	butter-churner	SUS304,stepless timing
29	cheese vat	SUS304,with heating jacket and insising device
30	pressor	SUS304,6 heads
31	mould	SUS304,10L,with cover
32	yogurt fermentation unit
33	fermentation tank	SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet
34	rotary pump	SUS304 stainless steel,Hard Alloy Mechanical Seal,manual stepless shift
35	plate cooler	SUS304,single stage,milk discharge at 4C
36	rotary pump	SUS304 stainless steel,Hard Alloy Mechanical Seal,manual stepless shift
37	filling unit
38	higher position tank	SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet
39	pasteurized milk filling machine
40	yogurt filling machine
41	CIP system
42	semi-auto CIP system	outer coat of SUS304 stainless steel material,inner shell of SUS316,single cleaning way,Concentrated acid/alcali tank adding system based on US technology, 100L×2 acid/alcali Concentrate tanks
43	CIP return pump	SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
44	installation part	whole milk processing line installation and commissioning

Product Description:

1. This milk production line raw milk can be fresh milk or milk powder, the procedure method can be pasteurization

or HTST pasteurizer or UHT processing.

2. End product package of this milk production line can be plastic pouches, plastic cups, plastic bottles, glass bottles, gable top carton
